3D Powder Mixer
503
SATURN 3D powder mixer for dry powders and granules. 100-600 L listed models, 50-1500 L custom, SUS304/316L, 360 degree multi-directional mixing with no internal shaft.

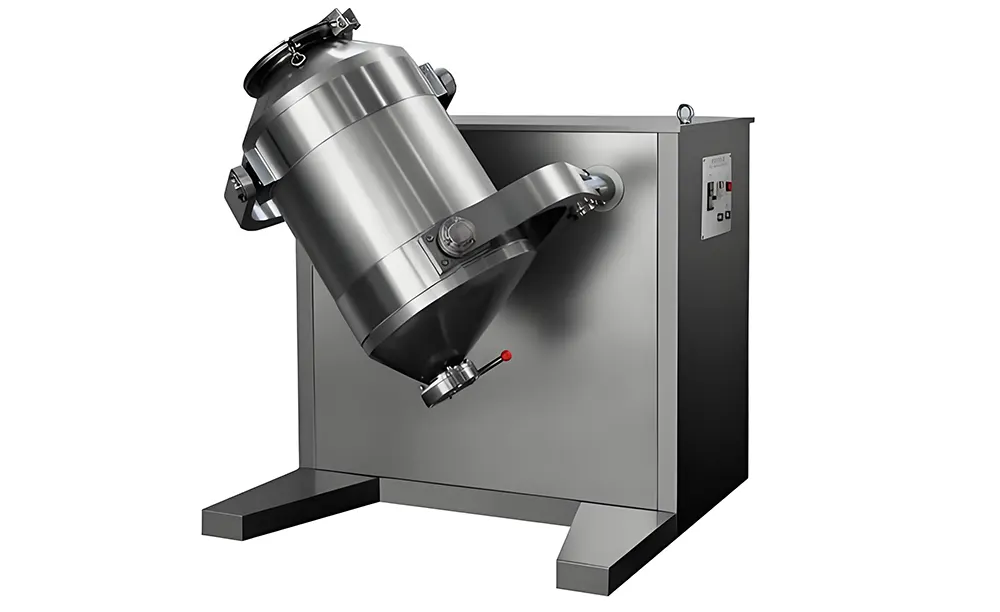

3D Powder Mixer
Introduction

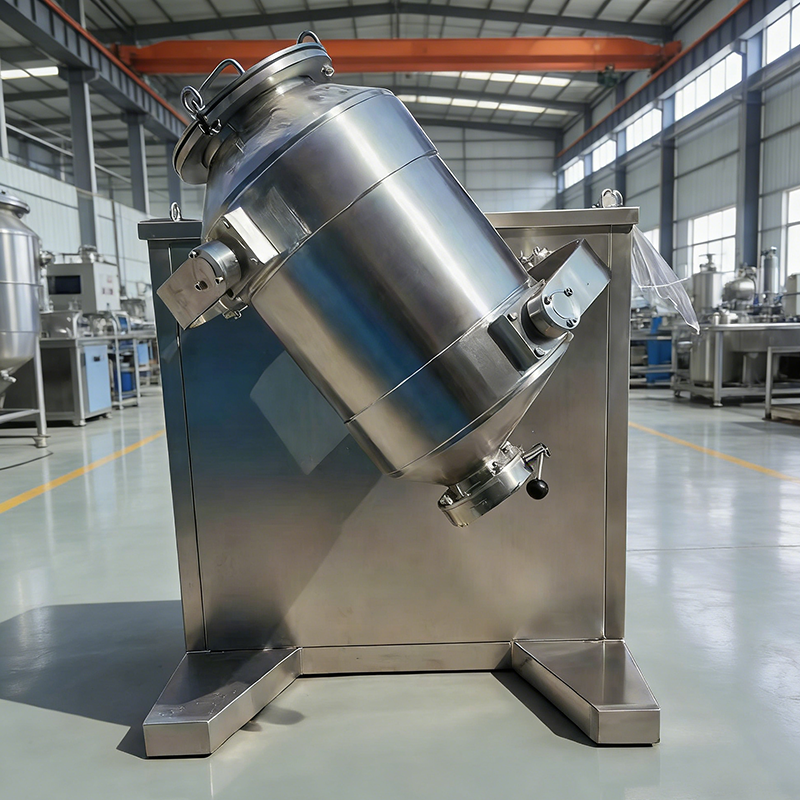

Industrial 3D Mixing Machine
The 3D mixer is a high-efficiency batch blender for uniform mixing of powder and granule materials. The vessel moves in three dimensions so the charge travels freely in all directions, with no internal agitator shaft and no mixing dead corners.
It is used where density contrast, particle integrity or residue-free discharge matter: food powders, chemicals, cosmetics, detergent powder and new materials.
- Product name
- 3D Powder Mixer
- Brand
- SATURN
- Mixer type
- 3D mixer
- Listed barrel volume
- 100 / 200 / 400 / 600 L
- Custom capacity
- 50–1500 L
- Contact material
- SUS304 / SUS304L / SUS316 / SUS316L
- Mixing action
- 360° multi-directional
- Spindle speed
- 10–24 rpm
Product introduction
3D Mixer Working Principle
The machine uses a three-dimensional motion principle. The mixing barrel is driven through a compound trajectory so materials move freely in all directions instead of circulating around a single shaft.
Because there is no internal agitator, the vessel itself is the mixing tool. Particles are repeatedly displaced, tumbled and recombined. This is intended for high-uniformity dry blending of powders and granules, including materials with different densities, without leaving a shaft or blade residue path.
Discharge is from the barrel outlet. With no internal shaft, emptying and cleaning are simpler than on ribbon or paddle mixers. The listed design is for dry powder materials, not wet granulation.
Features
Product Highlights
Eight features taken from the published product listing.
High mixing uniformity
Multi-directional motion is used to mix materials of different densities evenly.
No dead zones, no residue
No internal shaft. Discharge and cleaning are simpler, with less leftover material.
Hygienic stainless construction
Optional SUS304 or SUS316L, with a mirror-polished interior on the hygienic configuration.
Gentle, low-shear mixing
Low shear protects particle integrity on sensitive or fragile materials.
Stable, low-noise running
Listed as smooth running, low vibration and energy-saving.
Automatic and multifunctional
Core selling points on the listing: automatic operation and multifunctional use for dry powders.
Inspection before shipment
Machinery test report and outgoing video inspection can be provided.
CE listed
The listing states a CE certificate and EU-standard conformity for the machine.
Applications
Where the 3D Mixer Is Used
The listing names food, chemical and new-material industries, plus cosmetics and detergent powder as product types.
Food
Milk powder, protein powder, seasoning powder, flour and additives.
Chemical
Fine chemicals, pigments and dyes, powder additives and resin materials.
New materials
Battery materials, advanced powders and functional materials.
Cosmetics & detergent
Cosmetic powders, detergent powder and other dry powder charges listed as product types.
Machine details

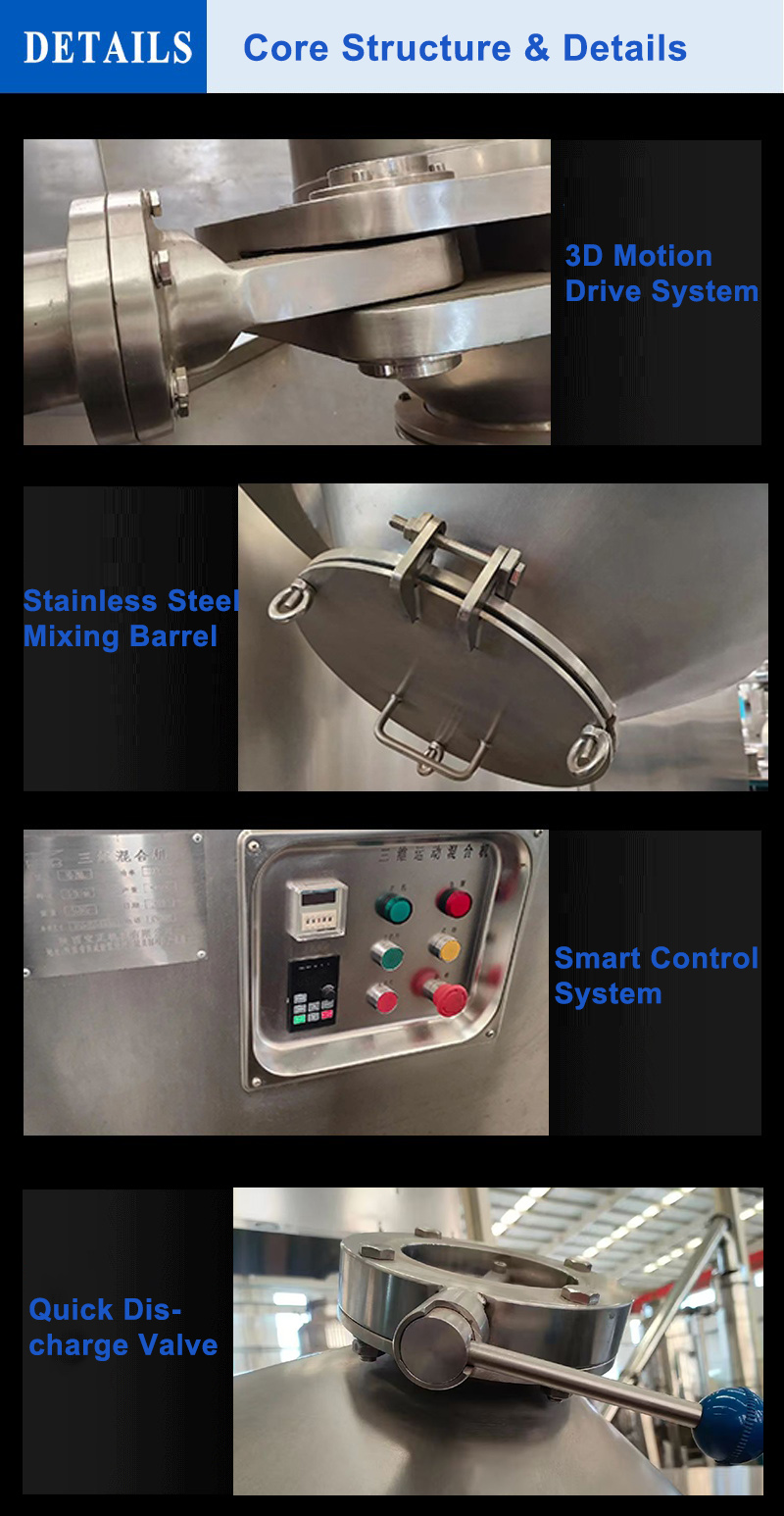

Core Structure
Four component groups shown on the source equipment sheet.
3D motion drive system
Heavy-duty flanges and a pivoting arm move the barrel through a multi-axis trajectory. Core components listed: motor, pump and gearbox. Motor type: servo.
Stainless steel mixing barrel
Cylindrical vessel with conical ends, clamp lid and gasketed hatch. Contact materials: SUS304, SUS304L, SUS316 or SUS316L.

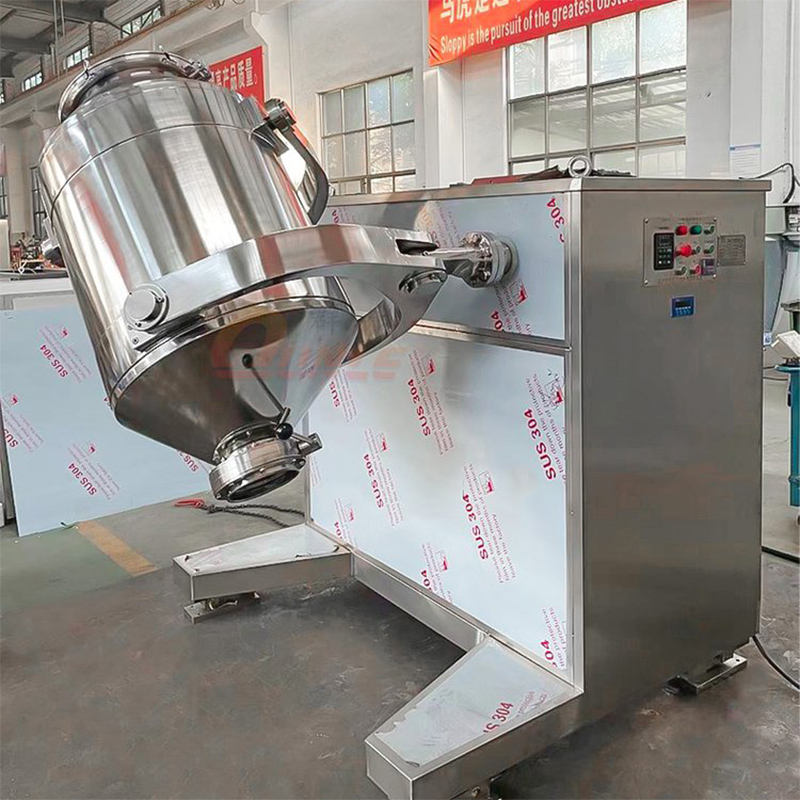

Control system
Side-mounted panel with digital display, keypad, start/stop controls and an emergency stop. Voltage options: 110 V, 220 V or 380 V.

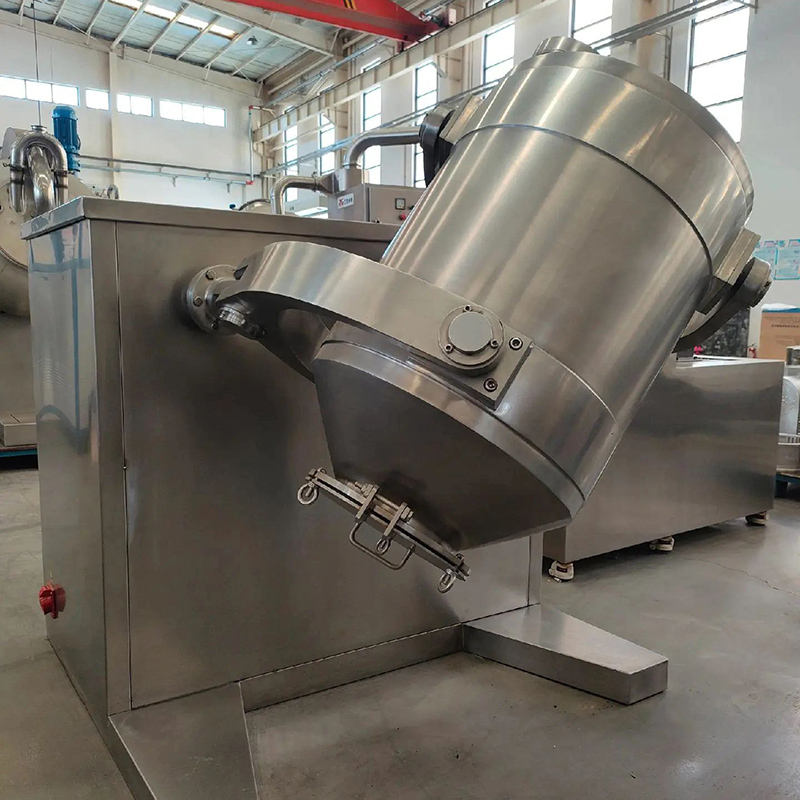

Quick discharge valve
Bottom outlet with a lever-operated valve for emptying the batch. The listing describes a bottom-input configuration and residue-free discharge.
Technical data
Specifications
Values below are the published listing attributes. Per-model power and speed rows were not published as a full table.
| Parameter | Published value |
|---|---|
| Model shown | S-100 |
| Barrel volume options | 100 L, 200 L, 400 L, 600 L |
| Custom capacity | 50 L–1500 L |
| Mixer type | 3D mixer |
| Suitable materials | Dry powders and granules; plastics, chemicals, food, cosmetics, powder |
| Contact material | SUS304, SUS304L, SUS316, SUS316L |
| Voltage | 110 V / 220 V / 380 V |
| Power | 2 kW, 3 kW |
| Motor type | Servo motor |
| Core components | Motor, pump, gearbox |
| Spindle speed | 10–24 rpm |
| Mixing speed | 10–25 rpm |
| Function | 360° multi-directional mixing |

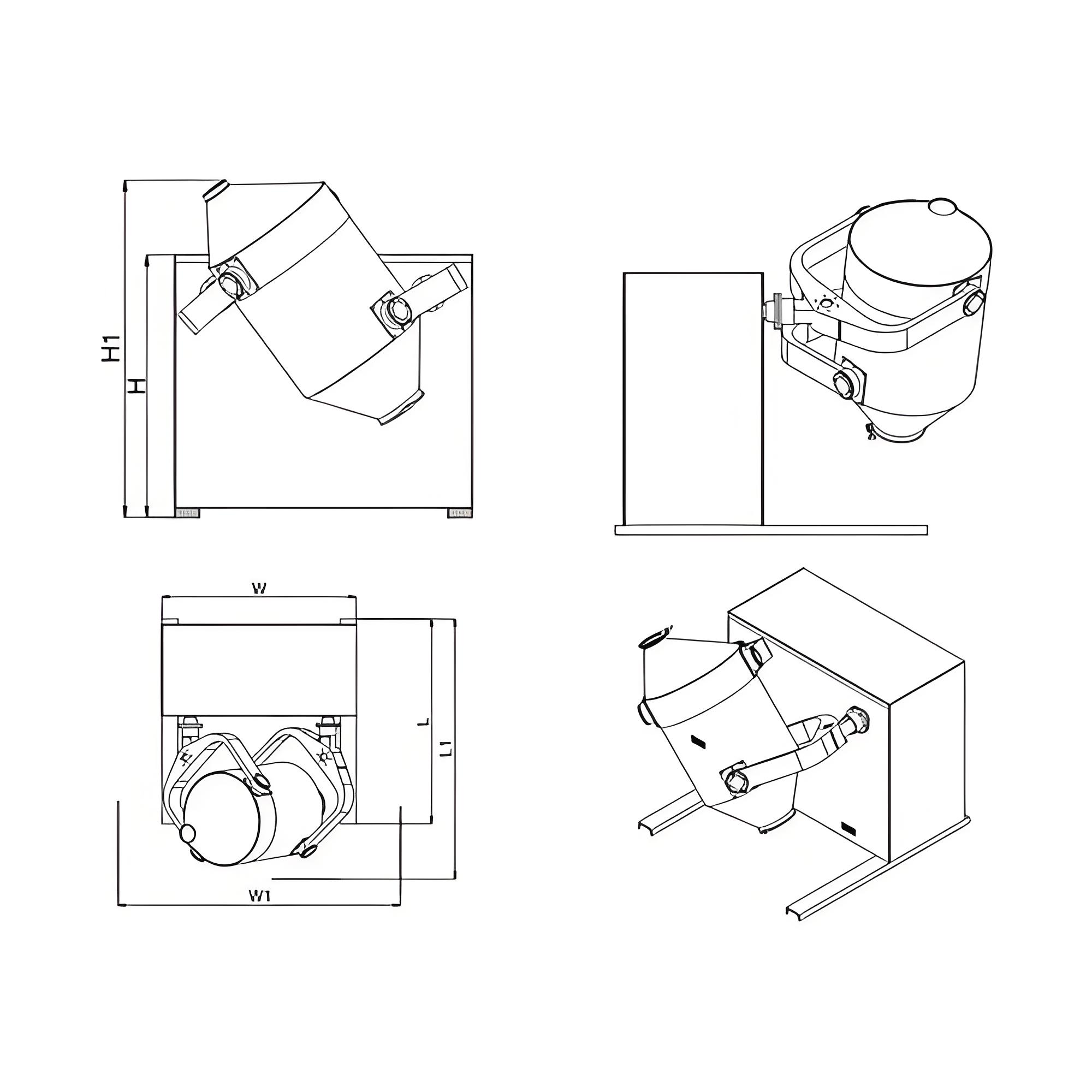

| Listed overall size | 1200 × 1800 × 1500 mm |
| Listed weight | 500 kg |
| Packing size | 120 × 180 × 150 cm wooden crate |
| Gross weight | 500.0 kg |
| Warranty | 1 year |
| Lead time (1 set) | 15 days |
| After-sales | Online support and video support; free spare-part replacement listed |
| Origin | Henan, China |
Listed offer on the source page: US$1,766 for 1–9 sets and US$1,466 for 10 sets or more. Confirm the model, stainless grade and voltage in a quotation. Mixing uniformity is stated as up to 99%, depending on the material and mixing time.
Options
Customization
The listing supports light customization, drawing-based, sample-based and on-demand builds. Minimum order is 1 set.
Barrel volume
100 / 200 / 400 / 600 L listed; 50–1500 L on a custom order.
Stainless grade
SUS304, SUS304L, SUS316 or SUS316L contact parts.
PLC control
PLC control system can be specified on a custom machine.
Explosion-proof
Explosion-proof design is listed as a supported custom option.
FAQ
Frequently Asked Questions
What materials can this mixer handle?
The 3D mixer is for powder and granule materials, including food ingredients, chemical powders and new materials. The listing also names cosmetics, detergent powder and plastics among processed types. It is specified for dry powder materials.
What mixing uniformity can I expect?
The listing states mixing uniformity can reach 99%, depending on material properties and mixing time. Confirm the result with the actual recipe and an agreed sampling method.
Can the machine be customized?
Yes. Supported options include different capacities, stainless 316L, a PLC control system and explosion-proof design. Mixer type, packing and barrel volume are also listed as custom fields.
How is the machine shipped and supported?
Packed in a wooden crate. Listed packing size 120 × 180 × 150 cm and gross weight 500 kg. Lead time for one set is 15 days. Warranty is 1 year. After-sales is online and video support; a machinery test report and outgoing video inspection can be provided.
