How to properly mix metal powders: Three-dimensional motion mixer

If you work with metal powders—whether for powder metallurgy, 3D printing, cemented carbide, or advanced ceramics—you already know that mixing is everything. Uneven blends lead to scrap, inconsistent sintering, and field failures. For years, the standard solution was V-blenders, double-cone mixers, or ribbon blenders. But they come with problems: segregation, shearing, contamination, and dead zones.

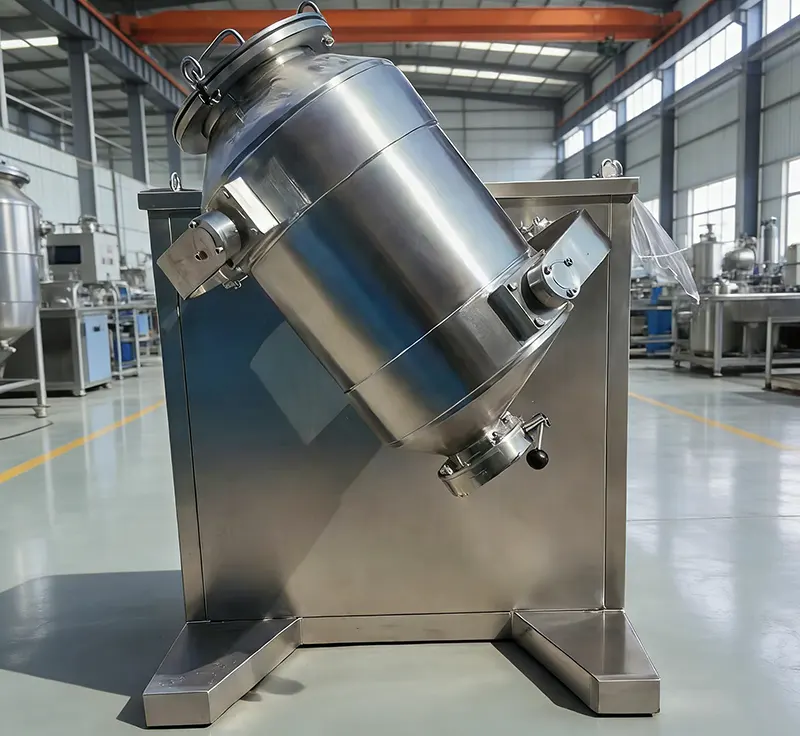

That’s where the three‑dimensional motion mixer comes in. It doesn’t use internal blades or high-speed rotors. Instead, the entire drum moves in three axes at once—translating, rotating, and rocking. This creates a gentle but thorough tumbling action that makes metal powder particles flow and diffuse without being smashed or smeared.

What makes it work

The idea is simple: no agitators inside the mixing drum. The drum itself is the only moving part, and its motion is carefully controlled to produce a chaotic but repeatable flow path. Powders with different densities and particle sizes—like fine tungsten carbide mixed with cobalt—don’t segregate. Instead, they continuously fold into each other.

In practice, the mixing uniformity can reach a coefficient of variation (CV) below 3%, which translates to near‑zero composition deviation. For a cemented carbide producer, that means the final sintered part has consistent hardness and toughness batch after batch.

Efficiency without damage

One common misconception: faster mixing is better. But for many metal powders, high‑speed blades change particle shape, generate heat, and wear down equipment. The three‑dimensional motion mixer runs at low speed, yet it completes a typical batch in 10–20 minutes—often cutting mixing time in half compared to old‑school double‑cone mixers. You get fast turnover without altering the powder’s morphology, which is critical for expensive materials like titanium alloy powders used in additive manufacturing.

Clean and contamination‑free

Because there are no mixing tools inside the drum, there’s no risk of metal‑on‑metal wear shedding impurities into your batch. The drum interior is smooth and can be lined with tungsten carbide or polyurethane if you need extra abrasion resistance. Cleaning between different powder formulations takes minutes—just open the drum, wipe it down, or blow it clean. No crawling into a vessel to scrub leftover material from blades.

Smart controls for production consistency

Modern three‑dimensional motion mixers come with PLC controls that let you dial in mixing time, drum rotation speed, and motion patterns. You can save recipes for different powder blends and recall them later. Real‑time monitoring catches any deviation. For high‑value powders—say, a superalloy powder for turbine blades—this traceability is non‑negotiable.

Where it shines

• Cemented carbide: A German manufacturer switched from double‑cone mixers to a three‑dimensional motion mixer and saw their sintered density consistency climb above 99%.
• Silicon carbide ceramics: A Chinese plant cut mixing time by 60% and increased bending strength of sintered parts by 15%.
• 3D printing powders: The gentle action preserves spherical particle shape, so the powder flows better in printers and gives denser parts.

No single mixer can handle every situation perfectly. However, if your goal is to uniformly blend metal powders, avoiding contamination, particle damage, or excessively long cycle times, then a 3D motion mixer is definitely worth serious consideration. It’s not a new technology, but it’s the kind of underrated, practical device that quietly solves the problems often associated with fancy high-shear mixers.

Whether you operate a small lab or a 24/7 production line, this machine can handle dry mixes, wet mixes with small amounts of binder, and even complex multi-component systems. With intelligent control systems becoming standard, you can record the mixing process for each batch to meet your requirements.
