Introduction

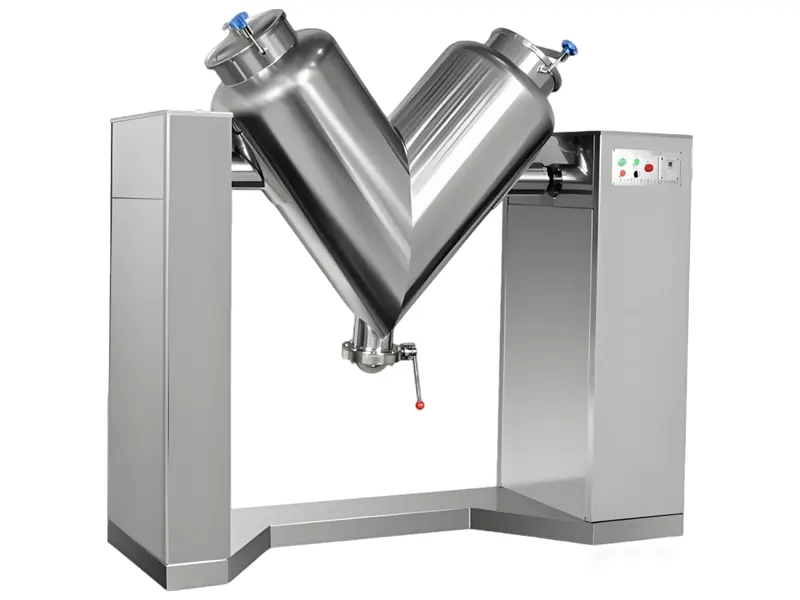

The V-type mixer ensures rapid, uniform blending of free-flowing powders and granules through its unique asymmetric design and gentle tumbling action.

Ideal for pharmaceuticals, food additives, and chemicals, it delivers high homogeneity with minimal heat or degradation.

Custom options like spray nozzles or intensifier bars are available for specialized needs.

Features

Batch working volume50 L -2000 L
Raw material316 L / 304 stainless steel
Mixing time5-7 mins

Request a Quote

Product Introduction

Feedback

Features

Batch working volume：50 L -2000 L
Raw material: 316 L / 304 stainless steel
Customizable; can be equipped with a liquid spraying device, heating jacket, or vacuum system.
No contamination to the material

Applications

Pharmaceutical: Blending active powders, excipients, and intermediates.
Food: Mixing seasonings, additives, nutritional powders, and milk powder.
Chemical: Blending dyes, pigments, plastic master batch, and fine chemicals
New Materials: Mixing battery cathode/anode powders, ceramic powders, and metal powders.

Specifications
Design Volume (L)	Capacity (L)	Power (kw)	Speed (rpm)	Inlet Size (mm)	Overall Dimensions (mm)	Weight （kg）
100	20-50	1.5	15	220*110	15705001200	200
200	40-100	1.5	15	250*150	17507001700	300
300	60-150	2.2	15	250*150	18458502010	580
400	80-200	2.2	15	270*150	23508901775	600
500	100-250	2.2	15	270*150	25009002280	650
1000	200-500	3	12	270*150	295010202620	900
1500	300-750	4	12	350*150	300011202900	980
2000	400-1000	5.5	12	350*200	383012503360	1510
