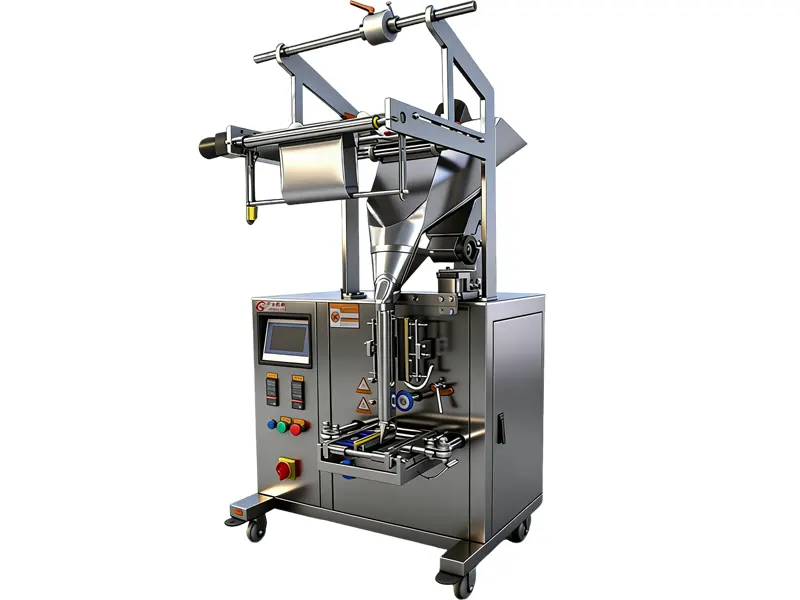

This fully automatic powder packaging machine is designed for filling and packaging various powder products (such as coffee powder, flavoring powder, laundry detergent, dye powder, etc.), with a single packaging weight of 10-3000g.
The machine has a packaging speed of 5-50 bags per minute and a filling range of 5-6000ml. It automatically completes bag making, coding, metering, filling, sealing, and bag cutting.
Suitable for the food, chemical, and pharmaceutical industries.
| Technical Parameters | |||
|---|---|---|---|
| Type | S-420 | S-520 | S-720 |
| Bag length | 80-300 mm | 80-400 mm | 100-400 mm |
| Bag width | 50-200 mm | 80-250 mm | 180-350 mm |
| Max width of roll film | 420 mm | 520 mm | 720 mm |
| Packing speed | 5-30 bags/min | 5-50 bags/min | 5-50 bags/min |
| Measuring range | 5-1000 ml | 3000 ml | 6000ml |
| Air consumption | 0.65 mpa | 0.65 mpa | 0.65 Mpa |
| Gas consumption | 0.3 m³/min | 0.4 m³/min | 0.4 m³/min |
| Power voltage | 220 V | 220 V/50 HZ | 220 V/50 HZ |
| Power | 2.2 KW | 3 KW | 5 KW |
| Dimension | 1320*950*1360 mm | 1150*1795*11650 mm | 1780*1350*1950mm |
| Weight | 540 kg | 600 kg | 700kg |

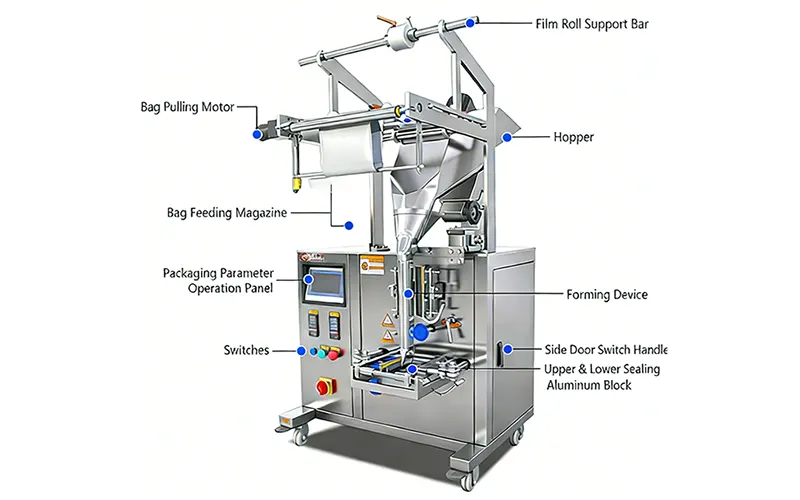

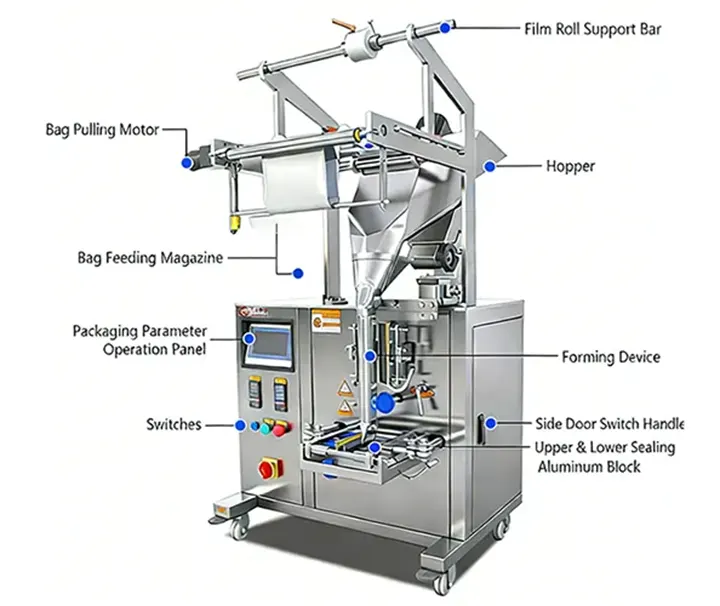

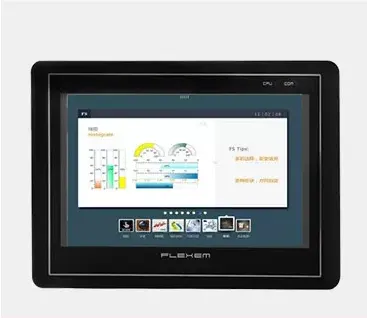

automatic powder packing machine for 1-3kg consists of the control panel with PLC touch screen, material tank, film roller conveying device, bag maker, code printer, vertical sealing device, double belts film pulling device, horizontal sealing & cutting device, discharge lower pallet, etc.
