Plough Shear Mixer

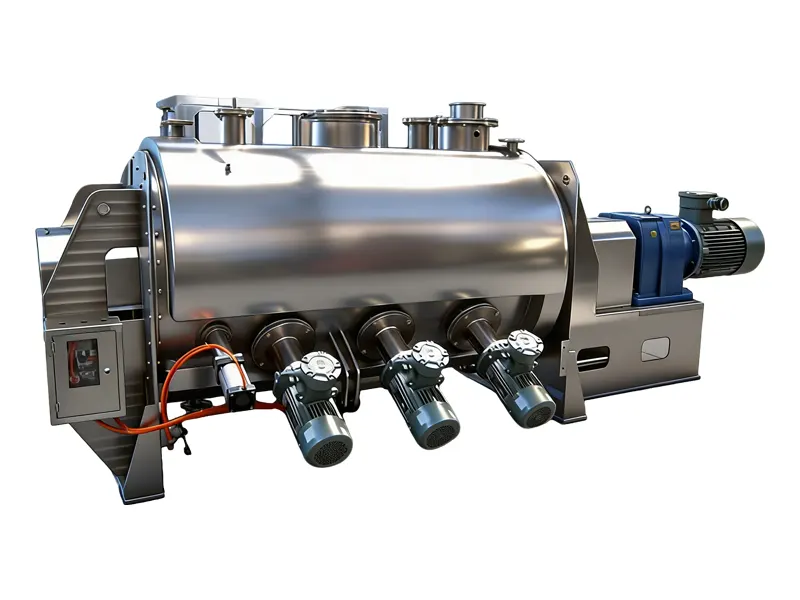

Plough Mixer(images 1)

Introduction

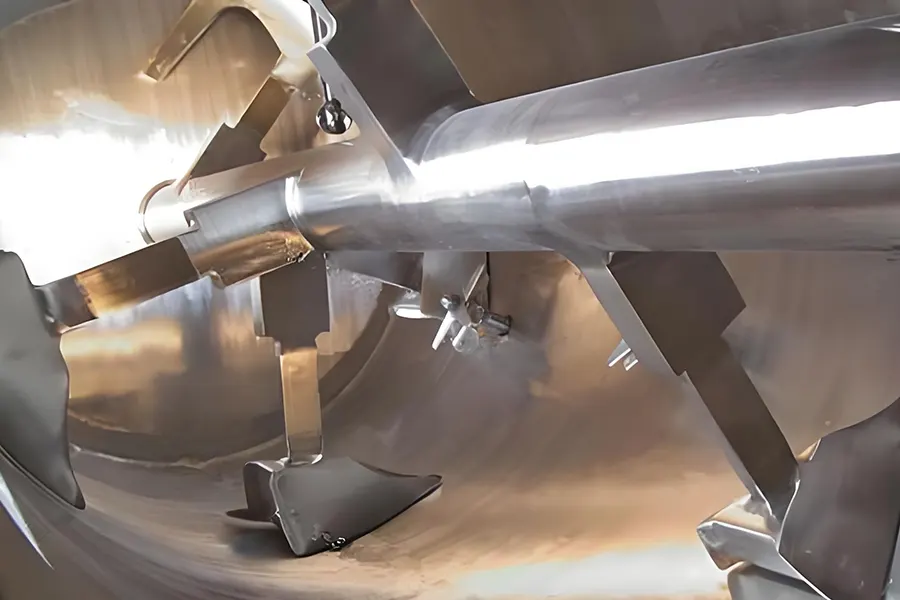

The plow separates and lifts the product into three-dimensional motion, while the number and arrangement of the tools insure agitation back and forth along the length of the vessel.

When the material flows past the high-speed choppers, it is cut and scattered by the blades, achieving uniform mixing in short time. The choppers help to remove lumps in the raw material, chop pasty additives, and prevent formation of agglomerates on liquid addition.

Features

  • Batch working volume0.1-20cbm
  • Batch weight0.3-15tons
  • Material304/316L Stainless Steel, Carbon Steel
Product Introduction

Features

  • Chemical: chemical powders, dye powders
  • Batch weight: 0.3-15tons
  • Manufactured material: 316L, 304, mild steel
  • Adjustable, replaceable mixing tools

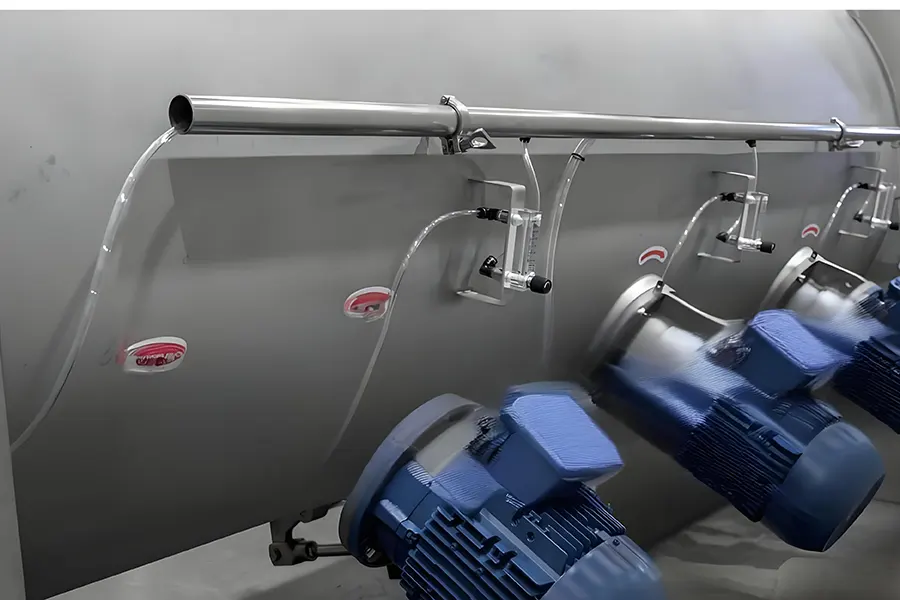

  • Liquid adding, temperature requirement, chamber lining&coated plough tools
  • High mixing homogeneity
  • Low power consumption

Applications

  • Chemical: chemical powders, dye powders
  • Battery: battery material
  • Cosmetic: cosmetics powder mixing
  • Pharmaceutical: chemical powders
Specifications
Gross Volume (L)Effective Volume(L)Overall Dimensions (mm)Shaft Speed (rpm)Approx. Weight (kg)
10040-601400*950*1100200400
300120-1801900*1100*1300162700
500200-3002000*1250*1500145865
1000400-6003200*1500*19001342000
1500600-9003600*1600*19501262300
2000800-12003800*1700*20501213100
30001200-18004200*1900*23001063800
40001600-24004500*2100*2400944800
