Double Paddle Mixer

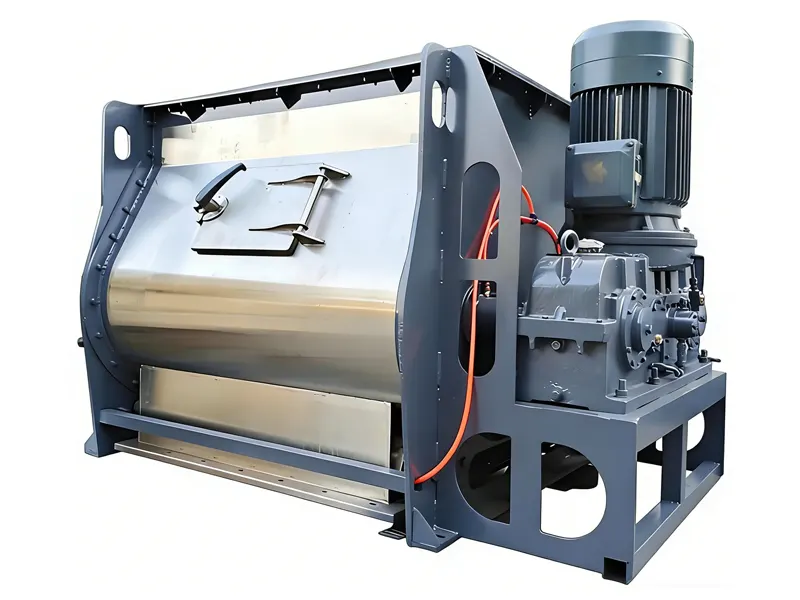

Double Paddle Mixer(images 1)

Introduction

Double shafts paddle mixer is high-performance mixer for powder, granules, liquid additives, short fibres, etc. like for mixing moistening, agglomerating, and granulating material, which is widely used in food, feed, chemical, dry mortar industries etc.

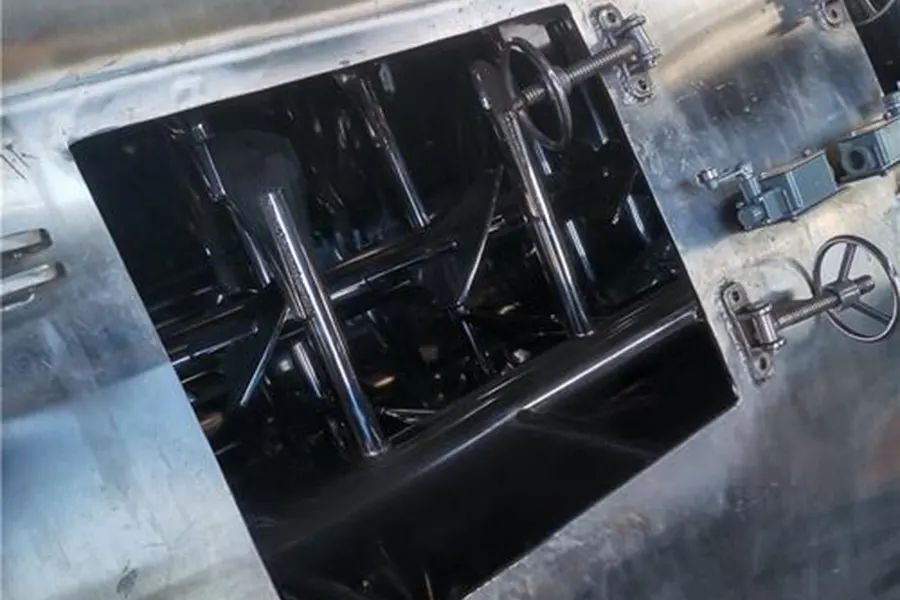

With the most powerful motor and double shaft paddle structure, material can be mixed evenly in the shortest time. It is particularly good at mixing material with big difference in gravity, mesh size, fluidity. Four or two hatches on the side of the machine (depending on the size of the mixer) ensure easy and hygienic cleaning of the system.

where requried, spray lines, side clean doors, high-speed choppers, heat or cold jacket,different functional coating can be installed to achieve the desired mixing effect.

Features

  • Batch working volume0.1-15cbm
  • Material304/316L Stainless Steel, Carbon Steel
  • Batch weight0.3-15tons
Product Introduction
Feedback

Features

  • Excellent mixing homogeneity in short time
  • Top high speed lump breaker device for de-agglomeration requirement
  • Abrasion resistant and heavy duty design for processing abrasive material
  • Batch or continuous process

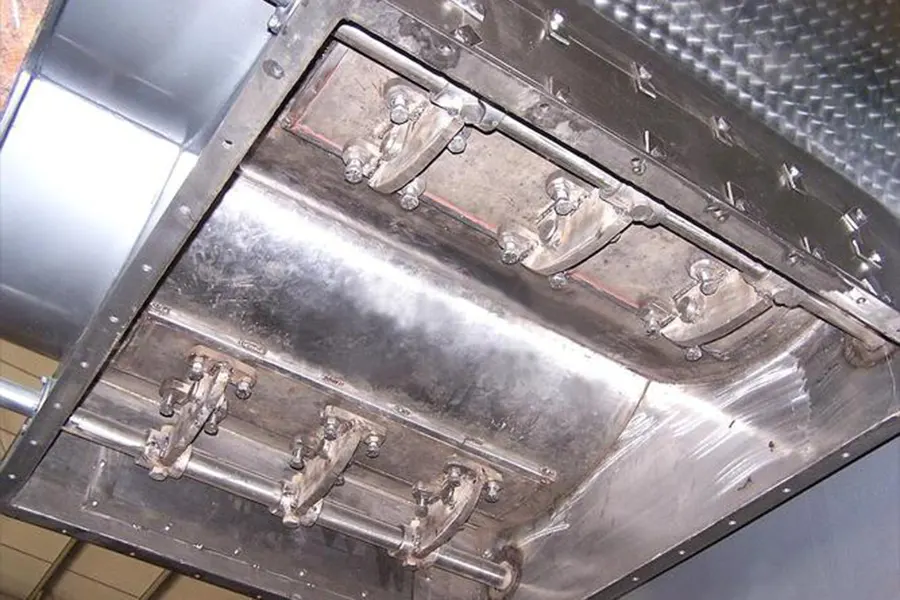

  • Big size discharge valve to minimize residues

Applications

  • Pharmaceuticals & Nutraceuticalsc: Active Pharmaceutical Ingredients, excipients, vitamin premixes, probiotic blends, and fine powder formulations
  • Food & Dairy: Milk powders, infant formula, protein blends, premium coffee/tea powders, spice mixes, and nutritional fortificants
  • Chemicals: Pigments, dyes, ceramic powders, metal powders, catalysts, and high-performance polymer blends
  • New Energy & Battery Materials: Cathode/Anode powders, conductive additives, solid-state electrolytes, and coating powders
Specifications
Gross Volume (L)Effective Volume (L)Overall Dimensions (mm)Shaft Speed (rpm)Approx. Weight (kg)
20080-1201200*1200*75043270
300120-1801300*1400*93043450
500200-3001500*1600*105043900
1000400-6001900*1600*1200431190
1500600-9002200*1700*1325431600
2000800-12002400*1700*1600432700
30001200-18002500*1850*1760433200
40001600-24002900*2200*1850294500
