Introduction

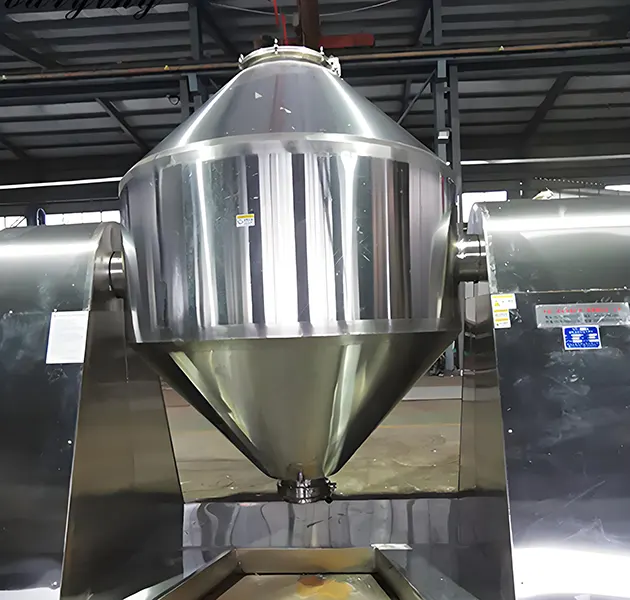

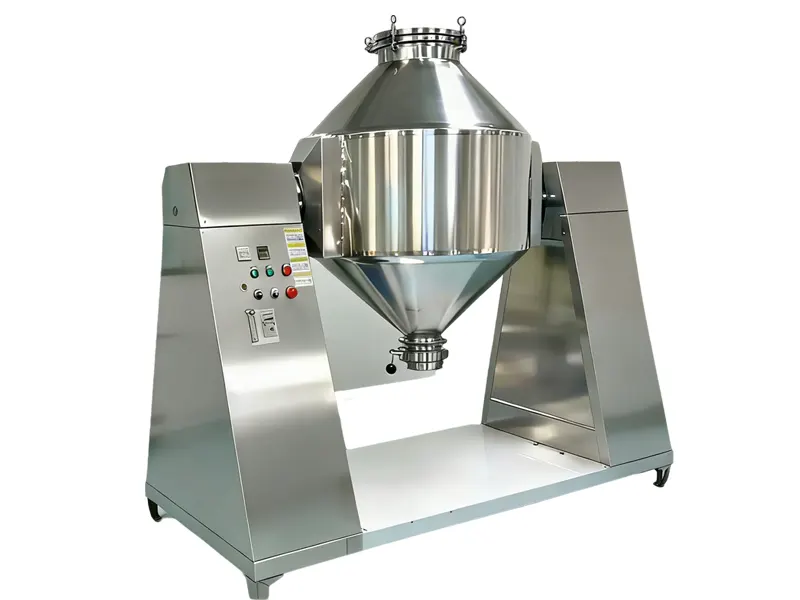

The double-cone mixer provides gentle, homogeneous blending through its unique tumbling action.

Its symmetrical design enables efficient three-dimensional mixing of dry powders and granules without internal blades, ensuring minimal product degradation.

Easy to clean and discharge, it is ideal for pharmaceuticals, food, and high-value materials.

Features

Material304/316L Stainless Steel, Carbon Steel
Batch working volume100 L -4000 L
Mixing time5-8 mins

Request a Quote

Product Introduction

Feedback

Features

Batch working volume：100 L -4000 L
Raw material: 316 L / 304 stainless steel

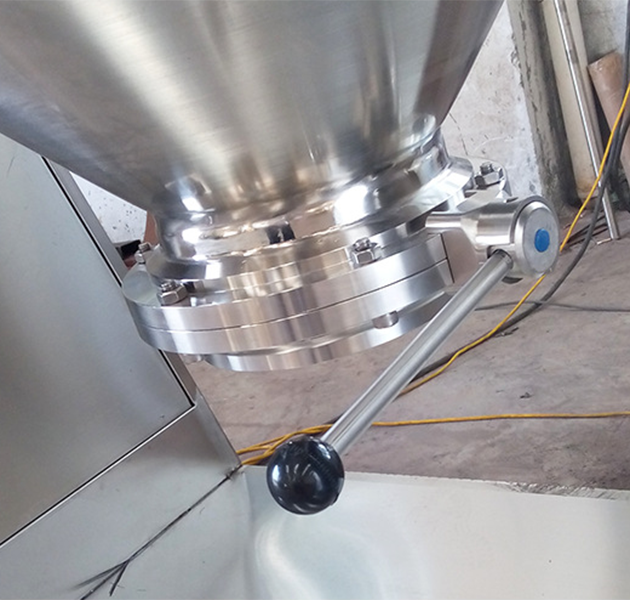

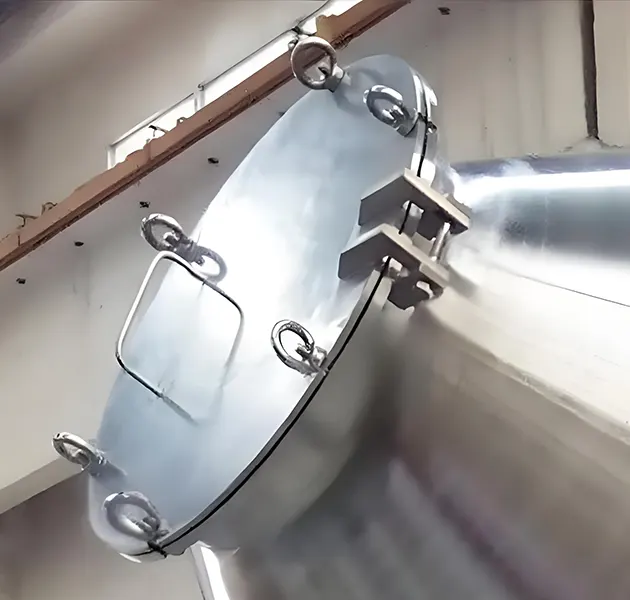

Vacuum feeding can be used, and the material can be discharged through a butterfly valve to achieve zero residue.

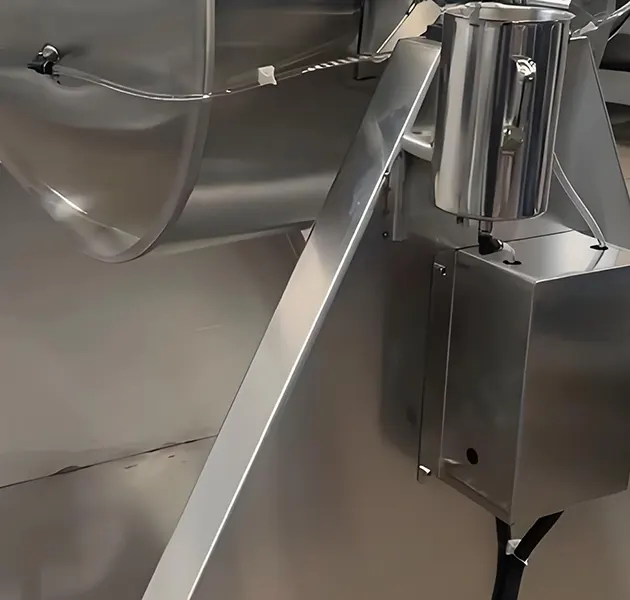

Optional spray device for injecting small amounts of liquid
Customizable heating, cooling and drying systems for materials

Applications

Pharmaceuticals：Excipients and powder formulations, Granules for tablet compression, Coated particles and microcapsules
Food & Beverage: Milk powder and dairy blends, Instant drink powders, Spice and seasoning mixtures, Nutritional powder supplements
Chemicals: Dyes and pigment powders, Fine chemical powders, Polymer powders and additives
Cosmetics: Loose powder foundations, Talc-free body powders, Pigment blends for makeup

Specifications
Design Volume (L)	Capacity (L)	Power (kw)	Speed (rpm)	Overall Dimensions (mm)	Weight （kg）
100	30-50	0.75	15	15006001500	240
200	50-100	1.1	15	17507001700	300
500	150-250	2.2	12	420016501560	650
1000	300-500	3	12	440018501850	900
1500	300-800	4	12	450018502000	980
2000	500-1000	5.5	12	540020502250	1600
3000	500-1500	7.5	9	655023502700	1800
4000	1000-2000	11	9	680025003000	2200
